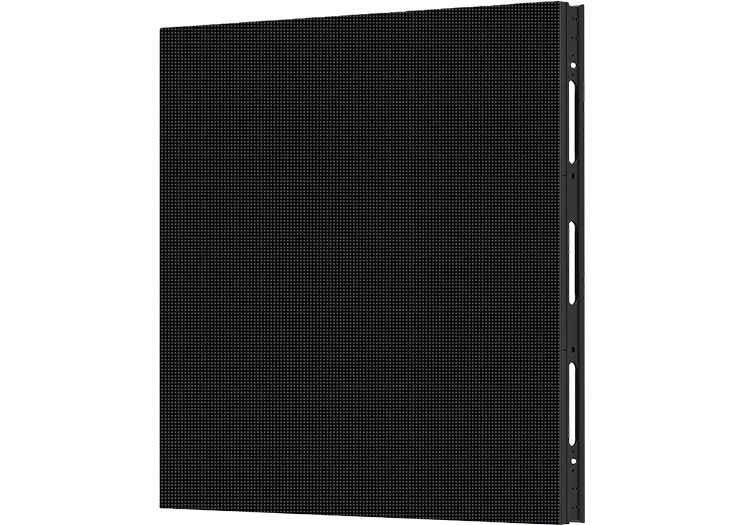

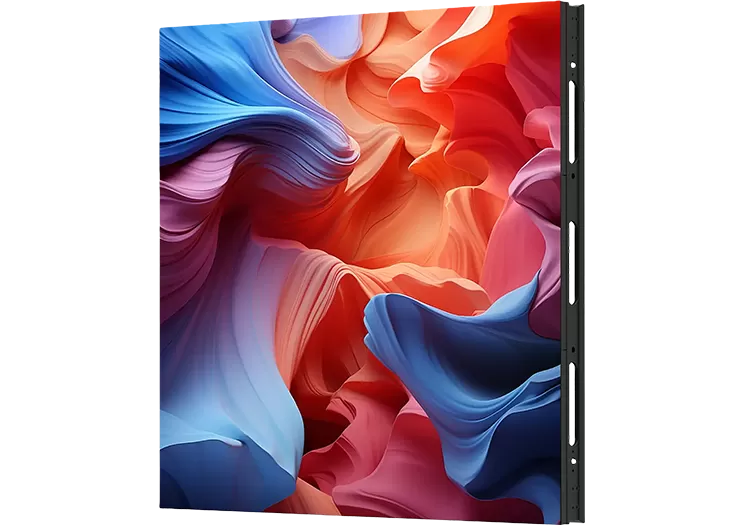

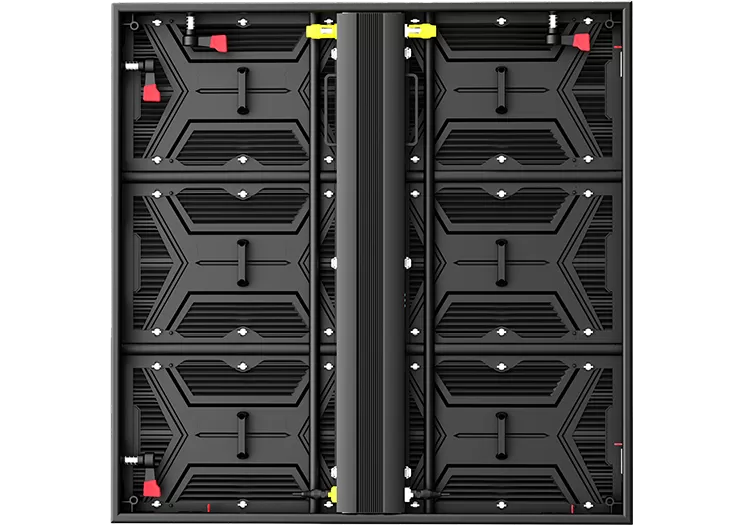

High-end Energy-saving LED Dispiay
HTi Series
- Features
- Specification
Related Products
HMG Series
P2｜P2.5｜P3.076｜P4｜P5｜P6.6｜P8｜P10
P2｜P2.5｜P3.076｜P4｜P5｜P6.6｜P8｜P10
HMG Series
DOOH Series LED Screen Waterproof Iron Cabinet
Read more
HiBK COB
P0.39｜P0.62｜P0.78｜P0.93｜P1.25｜P1.56｜P1.87
P0.39｜P0.62｜P0.78｜P0.93｜P1.25｜P1.56｜P1.87
HiBK COB
NO MODULE FRAME DESIGN
Read more
HK500
P1.963｜P2.6｜P2.97｜P3.91｜P4.81
P1.963｜P2.6｜P2.97｜P3.91｜P4.81
HK500
Magnetic Module
Read more
H169-C
P0.625｜P0.78｜P0.93｜P1.25｜P1.56｜P1.87
P0.625｜P0.78｜P0.93｜P1.25｜P1.56｜P1.87
H169-C
R169-C Series mini filp chip technology,anti-collision, HDR picture quality.
Common cathode circuit with low power consumption. 3 in 1 integrated system.
Read more
| Product Model | HTi391 | HTi481 | HTi625 | HTi781 | HTi104 |
| Pixel Pitch | P3.91mm | P4.81mm | P6.25mm | P7.81mm | P10.42mm |
| SMD Type | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Density | 65536 dot/m2 | 43264 dot/m2 | 25600 dot/m2 | 16384 dot/m2 | 9216 dot/m2 |
| Module Resolution | 128*64 | 104*52 | 80*40 | 64*32 | 48*24 |
| Module Size | 500*250mm | 500*250mm | 500*250mm | 500*250mm | 500*250mm |

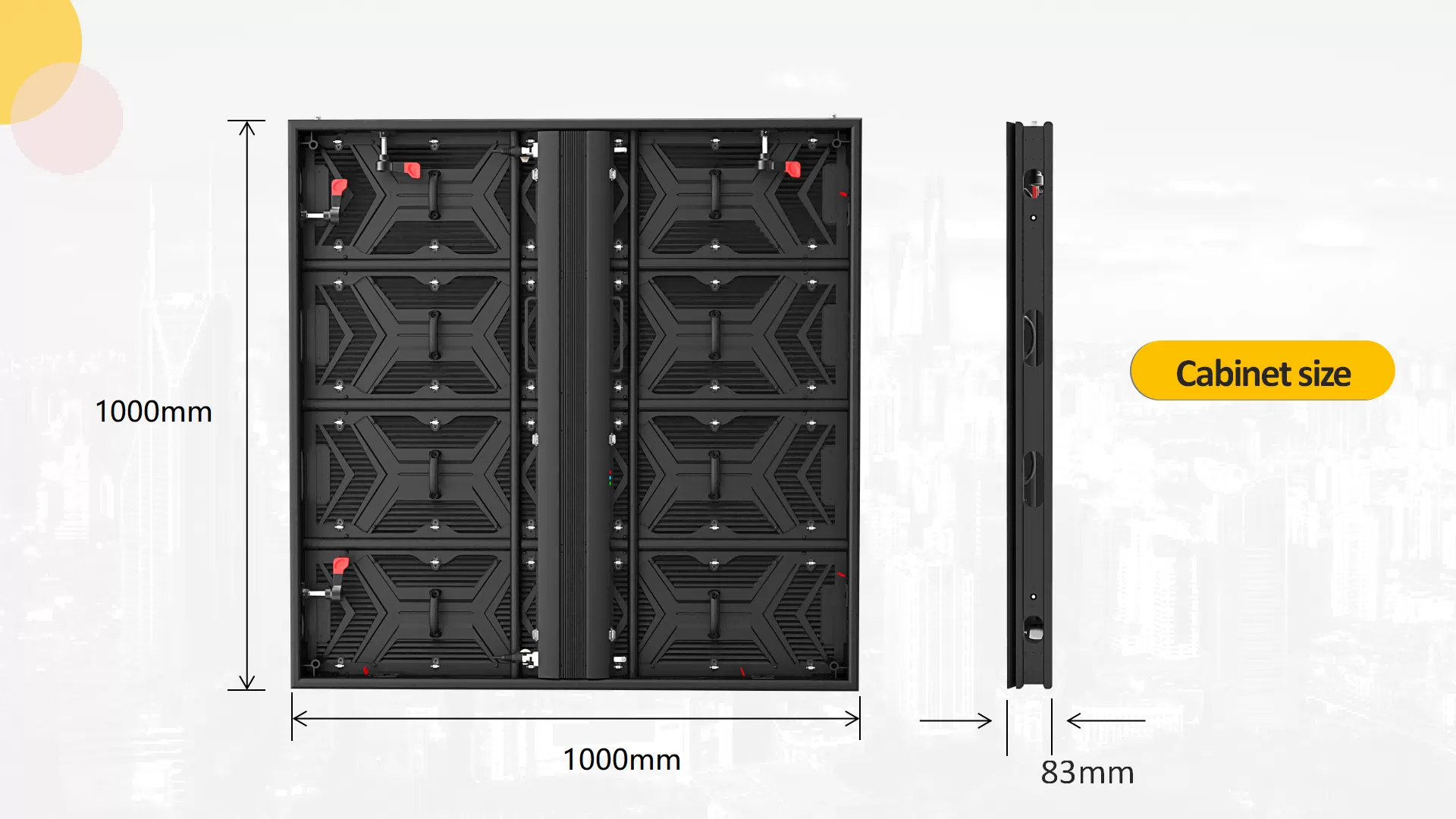

| Panel Size | 1000*1000*83mm | 1000*1000*83mm | 1000*1000*83mm | 1000*1000*83mm | 1000*1000*83mm |
| Panel Resolution | 256*256 | 208*208 | 160*160 | 128*128 | 96*96 |
| Module Quantity | 2*4 | 2*4 | 2*4 | 2*4 | 2*4 |

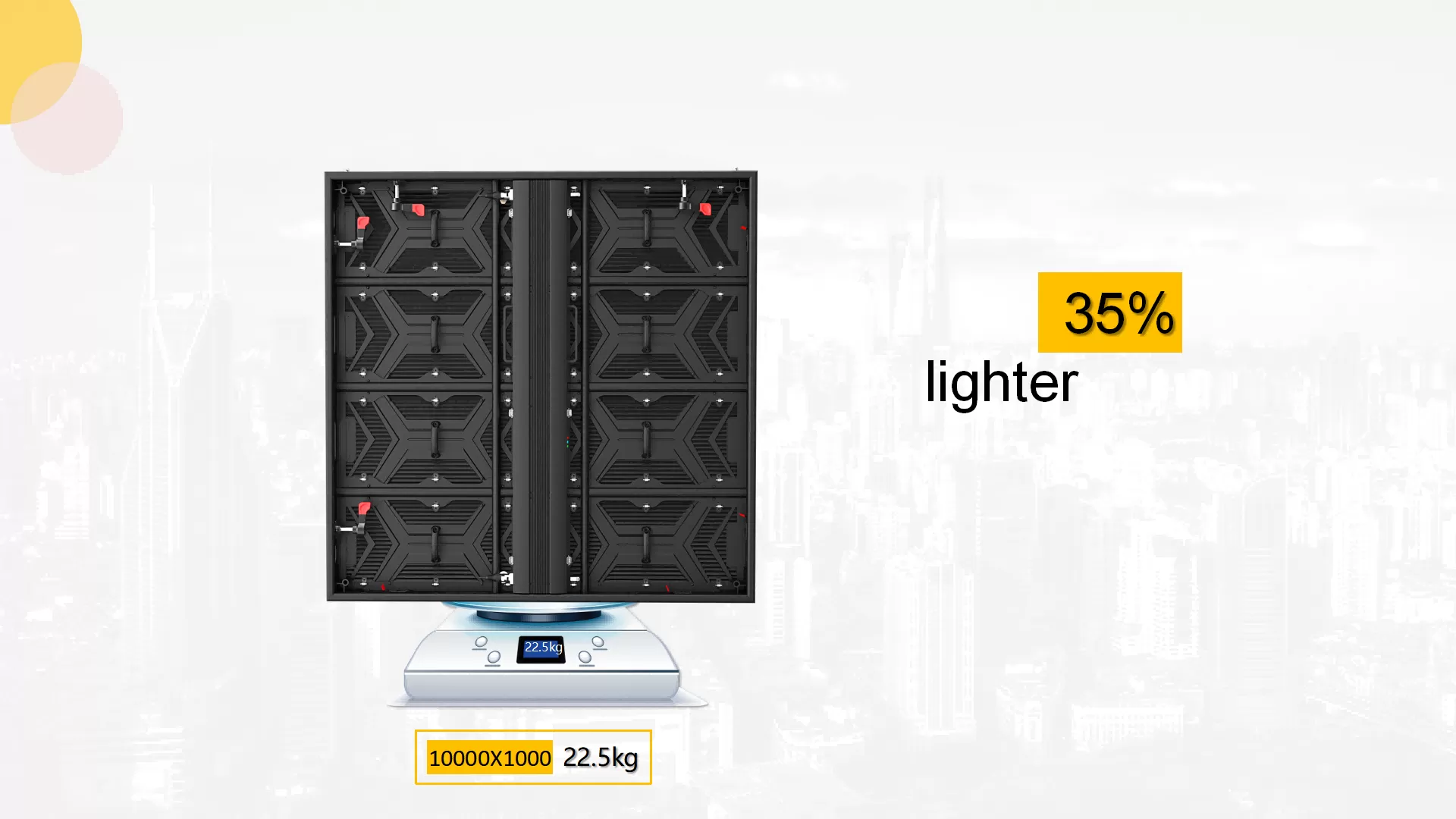

| Panel Weight | 22.5kg | 22.5kg | 22.5kg | 22.5kg | 22.5kg |

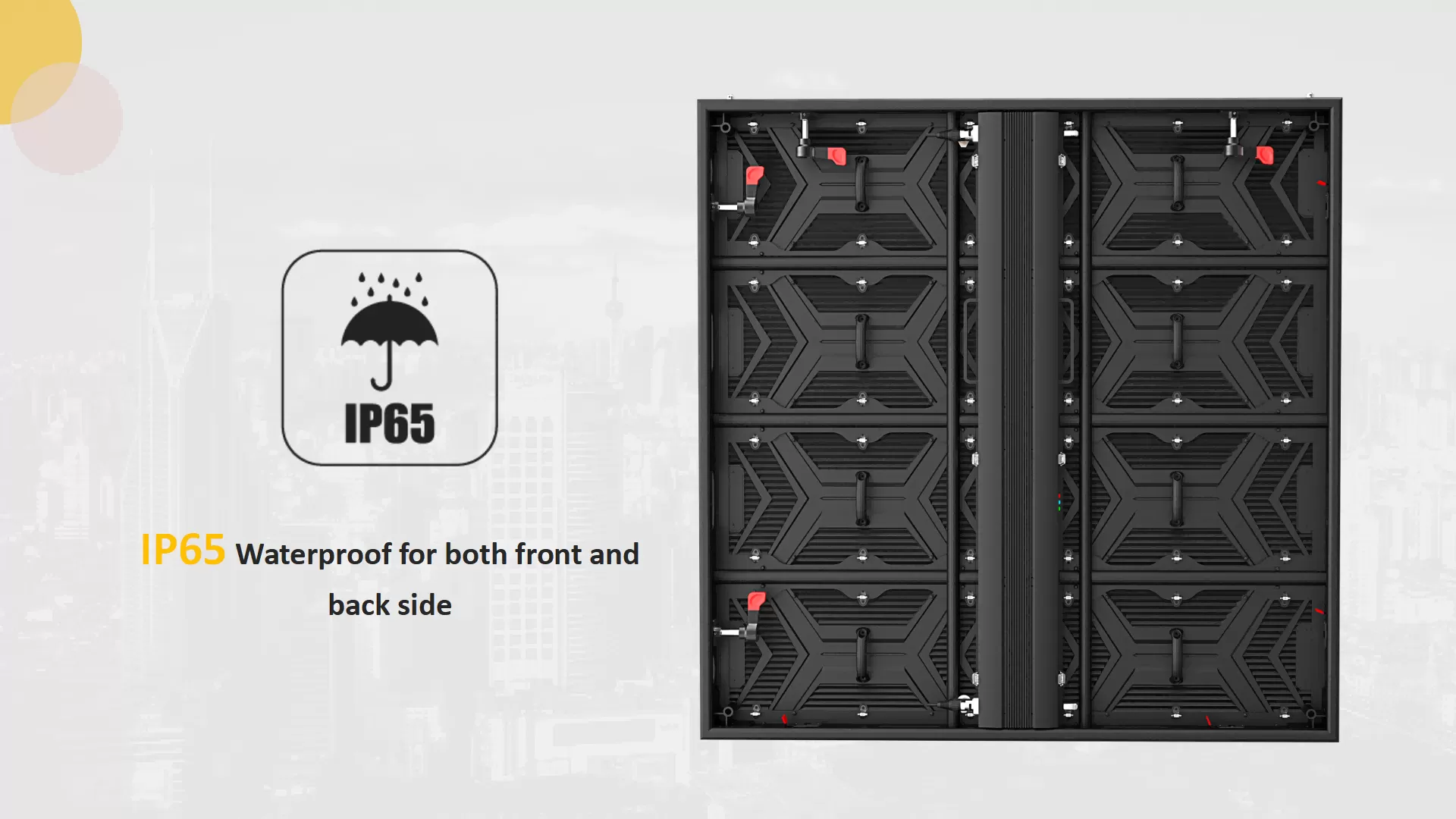

| Grude | IP65 | IP65 | IP65 | IP65 | IP65 |
| Scanning Mode | 16S | 13S | 8S | 8S | 8S |
| Brightness | 6000 Nit | 6000 Nit | 6000 Nit | 6000 Nit | 6000 Nit |
| Viewing Angle | 140°/160° | 140°/160° | 140°/160° | 140°/160° | 140°/160° |
| Viewing Distance | 4-100m | 4-100m | 4-100m | 4-100m | 4-100m |
| Gray Scale | 16bit | 16bit | 16it | 16bit | 16bit |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Color Temperature(K) | 1000-18500 Adjustable | 1000-18500 Adjustable | 1000-18500 Adjustable | 1000-18500 Adjustable | 1000-18500 Adjustable |

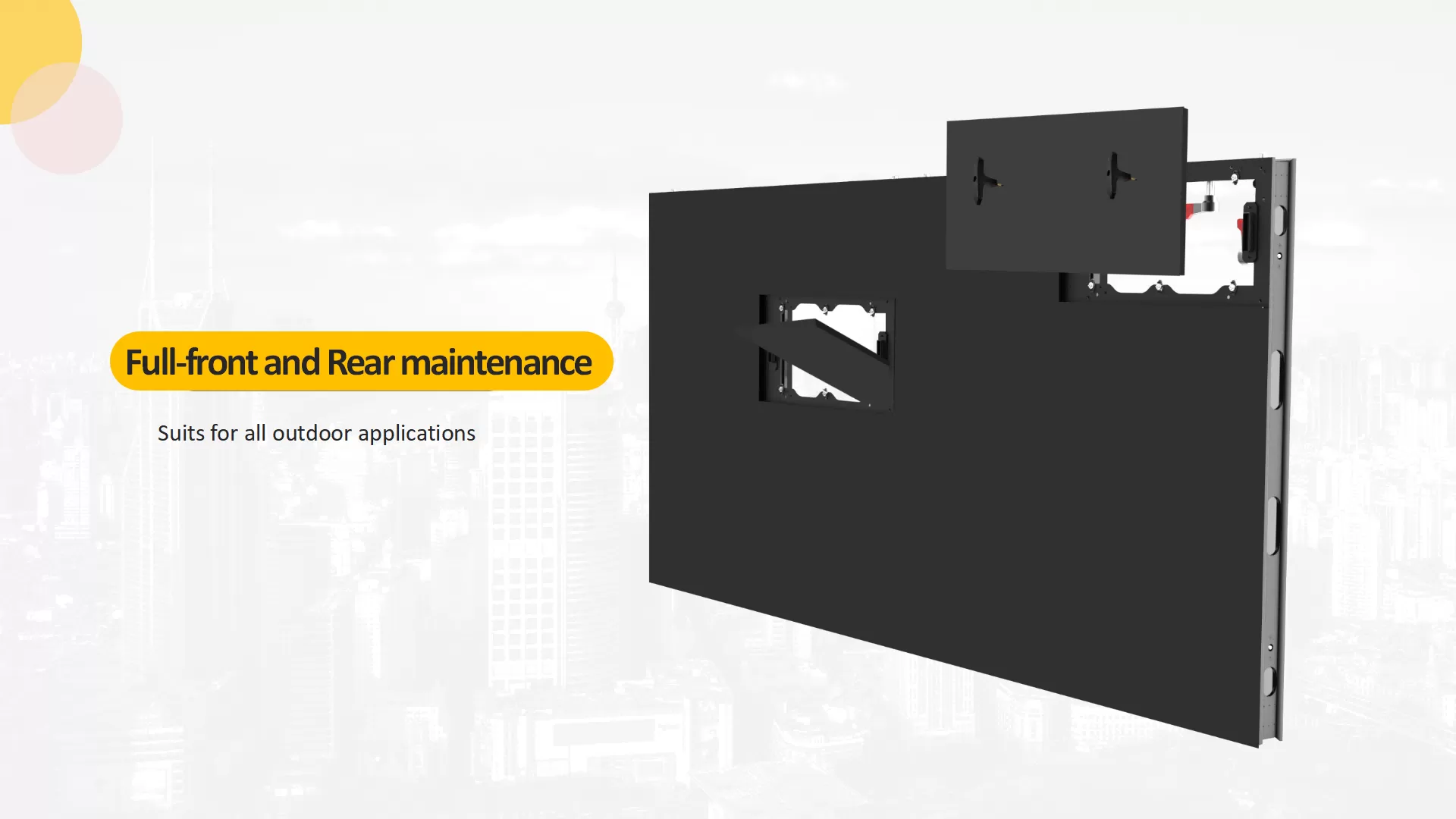

| Maintenance | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| Max. Power Consumption | 650 W/sqm | 650 W/sqm | 650 W/sqm | 650 W/sqm | 650 W/sqm |
| Ave. Power Consumption | 100-200W/sqm | 100-200W/sqm | 100-200W/sqm | 100-200W/sqm | 100-200W/sqm |
| Brightness Adjustment | 0 - 100 levels adjustable | ||||
| Control Mode | Synchronous display with control PC by DVI | ||||
| Supported Signal | Composite, S-Vido, Component, VGA, DVI, HDMI, HD_SDI | ||||
| Input Voltage | AC100~240 50/60HZ | ||||
| Working Temperature | -20℃~+50℃ | ||||
| Working Humidity | 10~95% RH | ||||
| Working Life | 100,000hours | ||||
