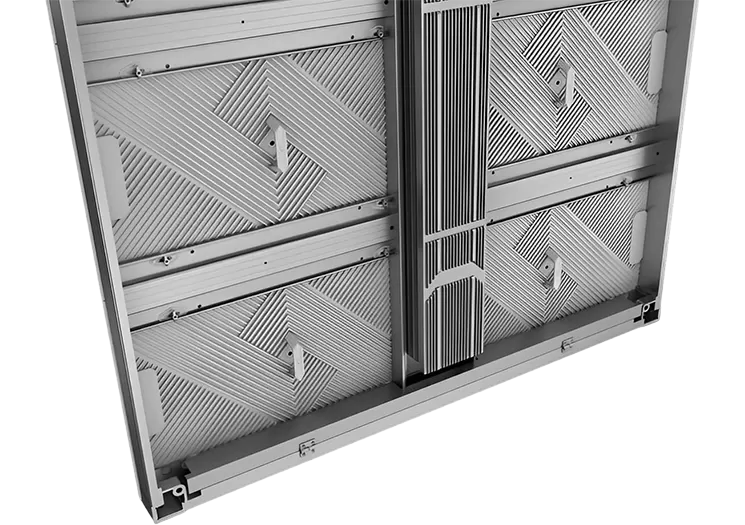

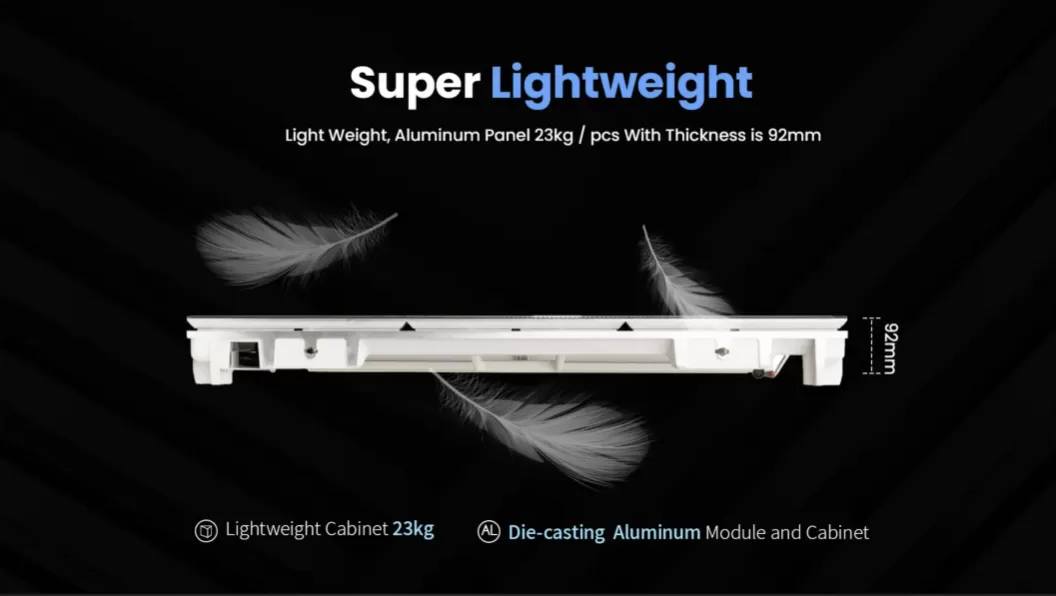

1.Light weight of the cabinet : 23kg
2.Special waterproof design : IP65
3.Perfect screen flatness

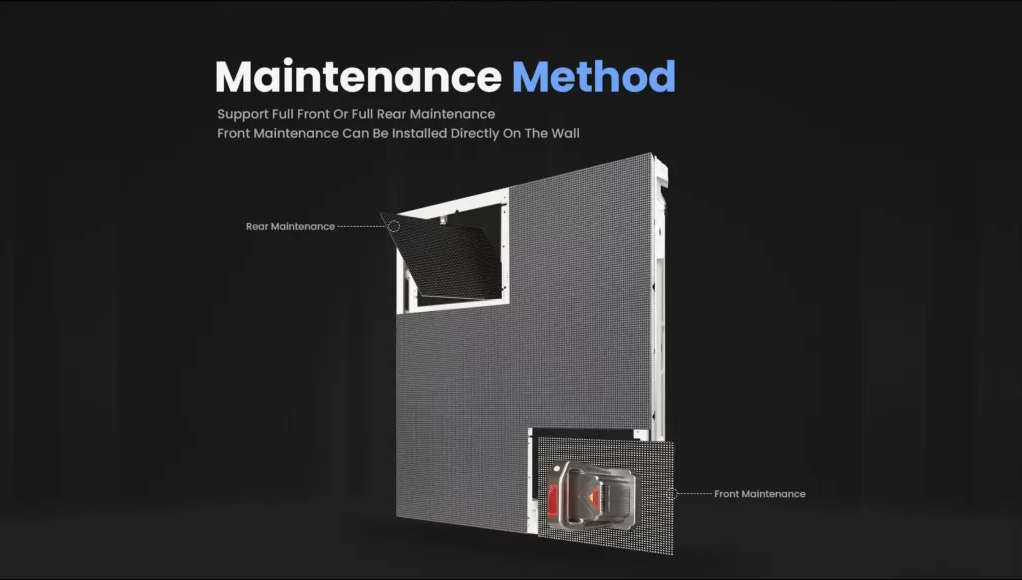

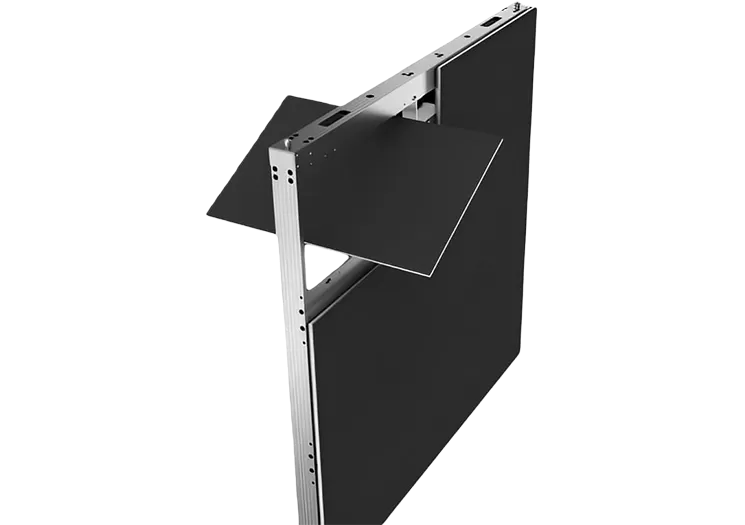

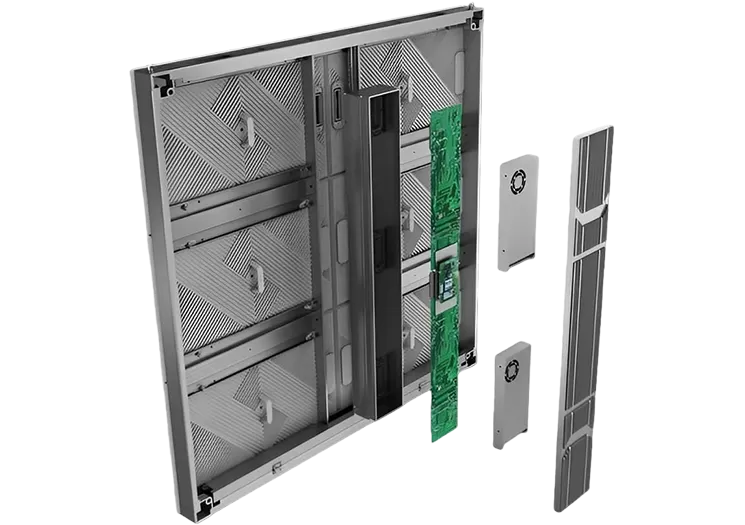

4.Support front and back service
5.480mm*320mm module size

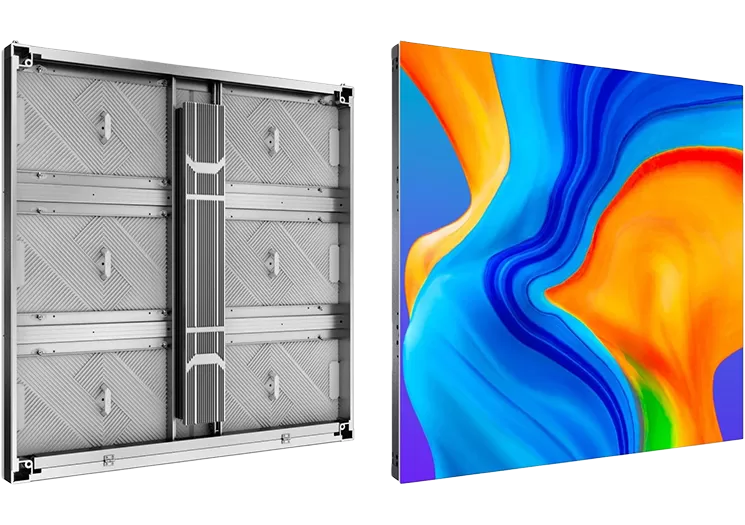

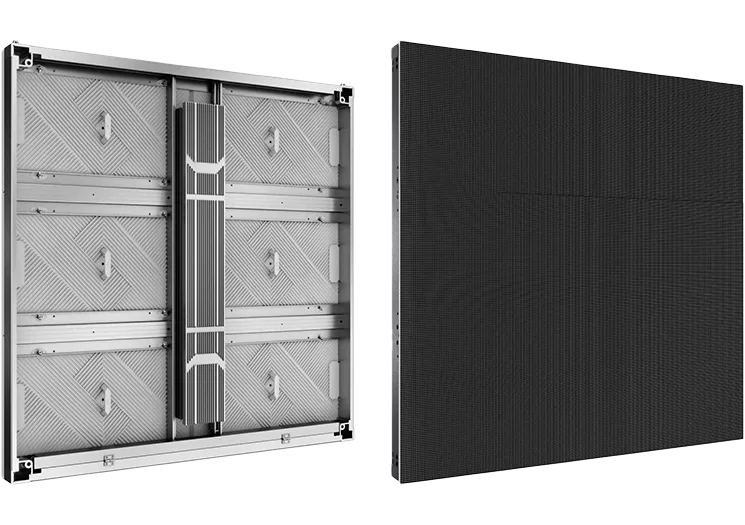

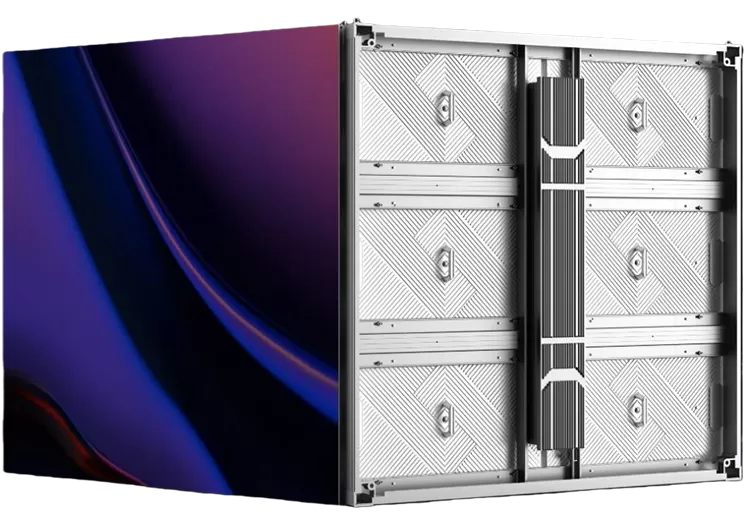

HCN960
- Features
- Specification
Related Products
Creative LED Display
Customized Solution Available
Customized Solution Available
Creative LED Display
Five Core Functions,Your Needs, We Create
Read more
HOT Series
P3｜P4｜P5｜P6｜P6.6｜P8｜P10
P3｜P4｜P5｜P6｜P6.6｜P8｜P10
HOT Series
DOOH Series LED Screen Waterproof Iron Cabinet
Read more
HTi Series
P3.91｜P4.81｜P5.95｜P6.25｜P7.81｜P10
P3.91｜P4.81｜P5.95｜P6.25｜P7.81｜P10
HTi Series
High-end energy-saving LED dispiay
Read more
HK 1000
P2.6｜P2.97｜P3.91｜P4.81
P2.6｜P2.97｜P3.91｜P4.81
HK1000
Magnetic Module
Read more
| Product Model | HiCN960 | HiCN960 | HiCN960 | HiCN960 | HiCN960 |
| Pixel Pitch | P4.44mm | P5.7mm | P6.67mm | P8mm | P10mm |
| LEDs | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Density | 50625dot/m2 | 30625dot/m2 | 22500dot/m2 | 15625dot/m2 | 10000dot/m2 |
| Panel Size | 960*960*75mm | 960*960*75mm | 960*960*75mm | 960*960*75mm | 960*960*75mm |
| Panel Weight | 24.5kg/Panel | 24.5kg/Panel | 24.5kg/Panel | 24.5kg/Panel | 24.5kg/Panel |
| Protection Grade | IP66 | IP66 | IP66 | IP66 | IP66 |
| Scanning Mode | 9S | 7S | 6S | 4S | 2S |
| Brightness | 6000-10000CD/m² | 6000-10000CD/m² | 6000-10000CD/m² | 6000-10000CD/m² | 6000-10000CD/m² |
| Viewing Angle | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° |
| Viewing Distance | ＞5m | ＞6m | ＞7m | ＞8m | ＞10m |
| Gray Scale | 16bit | 16bit | 16it | 16bit | 16bit |
| Color Type | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
| Max. Power Consumption | 500 W/m² | 500 W/m² | 550 W/m² | 550 W/m² | 550 W/m² |
| Ave. Power Consumption | 168W/m² | 168W/m² | 185W/m² | 185W/m² | 185W/m² |
| Refresh Rate | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ |
| Gamma Coefficient | -5.0~+5.0 | -5.0~+5.0 | -5.0~+5.0 | -5.0~+5.0 | -5.0~+5.0 |
| Brightness Adjustment | 0 - 100 levels adjustable | ||||
| Control Mode | Synchronous display with control PC by DVI | ||||
| Supported Signal Input | Composite, S-Vido, Component, VGA, DVI, HDMI, HD_SDI | ||||
| Input Voltage | AC100~240 50/60HZ | ||||
| Working Temperature | -20℃~+50℃ | ||||
| Working Humidity | 10~95% RH | ||||
| Working Life | 100,000hours | ||||
