| Pixel pitch | P0.78 COB | P0.9 COB | P1.25 COB | P1.56 COB | P1.87 COB | ||
| Application | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor |
| Real / Virtual | Real | Real | Real&Virtual | Real&Virtual | Real&Virtual | Real&Virtual | Real&Virtual |
| Common Cathode /Anode | Common | Common | Common | Common | Common | Common | Common |
| Cathode | Cathode | Cathode | Anode | Anode | Anode | Anode | |
| Scan Mode | 1/54 | 1/54 | 1/40 | 1/60 | 1/54 | 1/27 | 1/45 |
| Refresh Rate | 3840 HZ | 3840 HZ | 7680 HZ | 3840 HZ | 3840 HZ | 3840 HZ | 3840 HZ |
| Gray Scale | 14 bit | 14 bit | 16 bit | 14 bit | 14 bit | 14 bit | 14 bit |
| Brightness | 600 nits | 600 nits | 1200 nits | 600 nits | 600 nits | 1200 nits | 600 nits |
| Module Size(mm) | 150*168.75 | 300*168.75 | 150*168.75 | 300*168.75 | 150*168.75 | 300*168.75 | 300*168.75 |

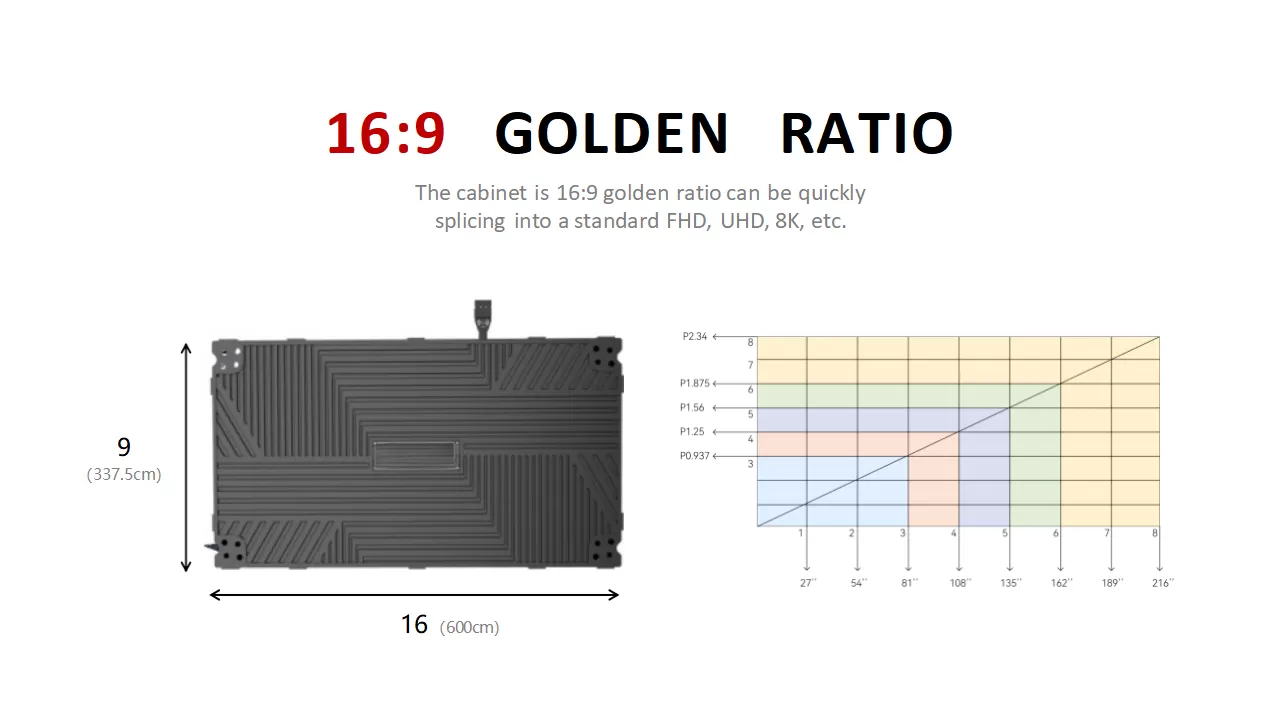

| Cabinet Size(mm) | 600*337.5*36.5 | 600*337.5*36.5 | 600*337.5*36.5 | 600*337.5*36.5 | 600*337.5*36.5 | 600*337.5*36.5 | 600*337.5*36.5 |
| Cabinet Weight | 6KG | 6KG | 6KG | 6KG | 6KG | 6KG | 6KG |
| Max. power Consumption | 350 W/sqm | 350 W/sqm | 350 W/sqm | 350 W/sqm | 350 W/sqm | 350 W/sqm | 350W/sqm |
